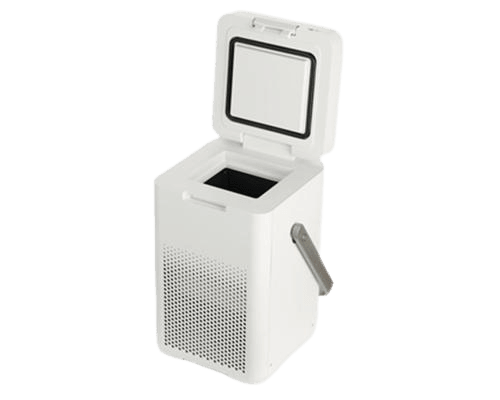

    Stirling Vaccine Freezer -86℃

    Ultra-low temperature vaccine freezer with compact size, lightweight, and outstanding cooling capacity.



    • Model: RG01L86
    • Voltage:12-24V
    • 70% Energy Savings
    • Intelligent temperature control
    • Built-in battery, ≥1H (when the vaccine freezer runs at full power)
    • Cooling Temperature to -86 ℃ in 2.5 mins

  • Your Premier Ultra-low Temp Vaccine Freezer

    Arctic Active Cooling ultra-low temperature portable vaccine freezer-RG01L86 adopts international advanced Stirling technology. With a small footprint, it can be used in hospitals, laboratories, research institutes, and other medical facilities. The temperature of this vaccine freezer can reach as low as -86℃, which is specifically designed for vaccine storage and transportation. Its intelligent temperature controller is able to maintain a precise temperature of ±0.1°C to protect vaccines from any harmful effects of changing temperatures.



    This Stirling vaccine freezer has a built-in large-capacity lithium battery, which can work for more than 1 hour without an external power supply. Stirling technology is a breakthrough in small and deep freezing. It can be used in abundant applications, also a better alternative to a refrigerated compressor. RIGID breakthrough cooling technology makes the Stirling ultra-low temperature (ULT) freezer uniquely efficient, lightweight and flexible enough to meet today’s unprecedented COVID-19 vaccine cold chain deployment challenges.

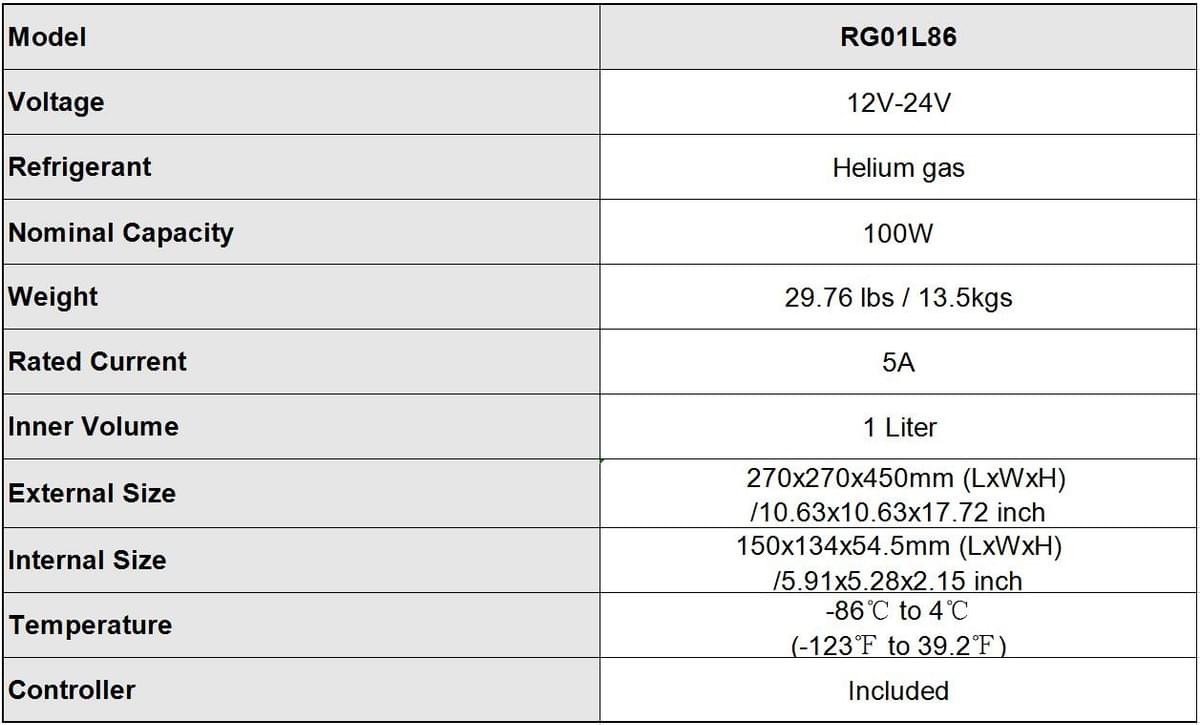

  • Technical Data

    broken image

  • Ultra-low Temp Vaccine Freezer

    broken image

    Stirling Vaccine Freezer -86℃

    Model: RG01L86

    • Voltage: 12V-24V
    • Rated Current: 5A
    • Inner Volume: 1 Liters
    • Refrigerant: Helium gas
    • Net Weight: 29.76 lbs / 13.5kgs
    • Cooling Capacity: 100W
    • Temperature: -86℃ to 4℃/-123℉ to 39.2℉
    broken image

    Stirling Vaccine Freezer -86℃

    Reliability & Stability

    Oil-Free, Ultra Quiet, Vibration-Free; Uniquely efficient, lightweight, and flexible can be installed on various applications, especially for COVID-19 vaccine cold chain storages.

    Superior Insulation

    It is integrated with a high-pressure foaming liner and vacuum insulation panel, with no cold leakage, and all-around protection. A double-layer submersible door and double-layer sealing ring makes quick cool to -86℃ in minutes.

  • Advantage

    High Capacity

    Miniature Size

    High Efficiency

    High Reliability

    Low Weight

    Low noise

  • Application

    broken image

    Portable and compact size stores vaccines or medicine all over patient care. Temperature is adjustable from -86℃ to 4℃. It is suitable for transporting vaccines, bacterial viruses, blood, human organs, immuno-medical products, and other goods with high-temperature requirements.

    broken image

  • Features

    High Performance BLDC Small Compressor

    Stirling technology is a breakthrough in small and deep freezing, combining 70% energy cost savings, minimal maintenance, and the smallest footprint. Built-in battery in the freezer ensures safe transport.

    Intelligent Control

    Laboratory-grade PT100 thermometer sampling to ensure temperature accuracy at ±1 °C. Safely maintains temperatures from -86°C to 4°C, meeting most pharmaceutical, vaccine, and medical requirements.

    Small&Portable

    Maximize space utilization and store more vaccines and biospecimen inventory in less space. The freezer RG10L80 has the largest storage capacity per square foot/m2 in its class, suitable for 10×10 2ml sample test tube boxes.

  • E-shop

    Sample products are available from our online store.

    Your order will be proceeded in 24hrs and delivered by DHL/UPS/FedEx.
