Max DC Aircon
Equipped with twin cylinder miniature compressor and innovative small footprint design.
- 24V DC
- R134a/R290 Refrigerant
- Brushless Motor Drive
- Small in size, yet large in power density
- 2,000~4,500 rpm variable speeds drive board
- Strong power and low working noise

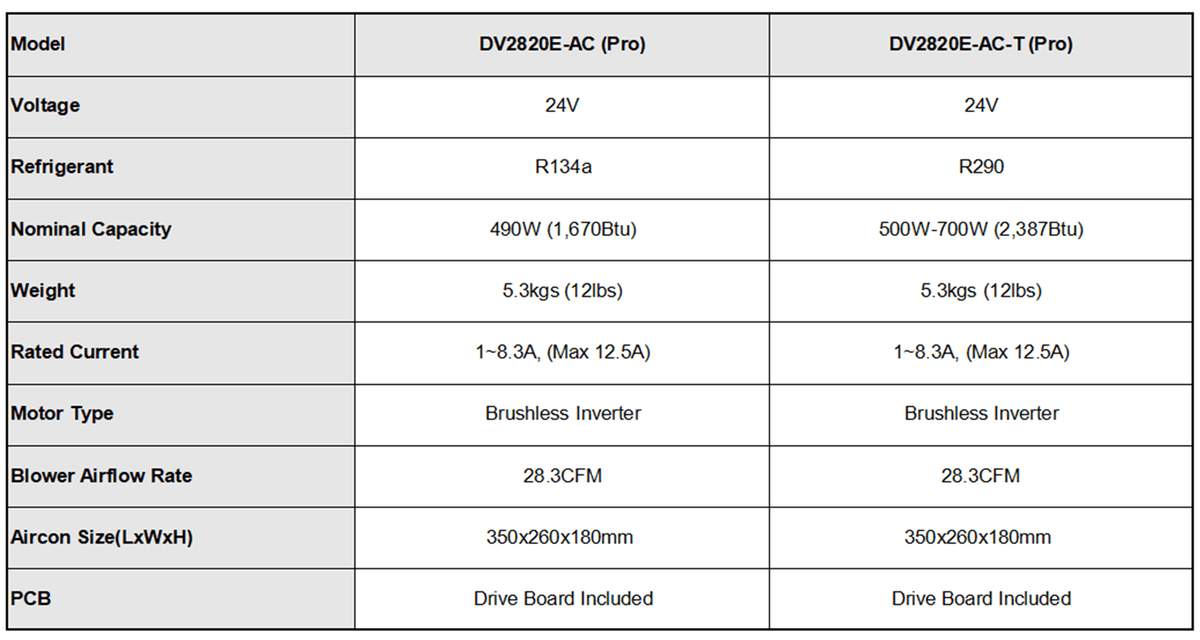

Technical Data
Compressor Model
R134a 2.8cc Twin Cylinder Mini Compressor Micro DC Aircon
Model: DV2820E-AC
- Voltage: 24V DC
- Cooling Capacity: 490W (1670Btu)
- Refrigerant: R290
- Net Weight:9.92lbs/4.5 Kgs
- Working current:1~8.3A(Max 12A)
- Size: 350*260*185mm (13.7*10.2*7.2 inch)
R290 2.8cc Twin Cylinder Mini Compressor Micro DC Aircon
Model: DV2820E-AC-T
- Voltage: 24V DC
- Cooling Capacity: 500W-700W (2387Btu)
- Refrigerant: R290
- Net Weight:12lbs/5.3 Kgs
- Working current: 1~8.3A(Max 12A)
- Size: 350*260*185mm (13.7*10.2*7.2 inch)
