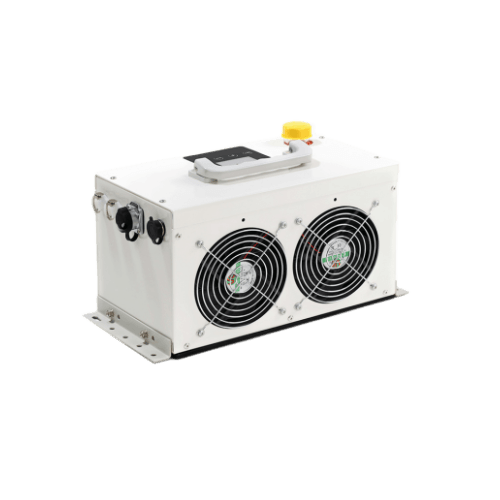

AlphaCooler (Cool)
The Best Compact, Lightweight, and Rugged Water Cooling System for Racing and Motorsports.
- 12V ~ 24V DC
- R134a Refrigerant
- Capacity: 100W ~ 500W
- Touch Screen & Remote Controller
- Cooling Temp: -5℃ ~ 20℃ (23℉ ~ 68℉)
- Parts: 1 x Power cord; 2 x Liquid pipe; 4 x Quick connector; 1 x Fuse.
- Optional: Remote, Cooling Vest, Customer’s Logo, Custom-made.
Stay Cool, Stay Comfortable, Stay in Control.
The AlphaCooler is the most powerful, portable, iceless water cooler ever designed for core cooling like body cooling, Athletes, Medical, and Racing Drivers. It is also a personal water cooling system that connects to the hoses of a cooling suit and provides sufficient cooling to sustain the user during a mission. These systems are used by responders to prevent heat stress injuries when operating in environments that require the use of PPE (personal protective equipment).
Requiring no ice, this compact cooling system is completely maintenance-free and runs solely on the power of a rotary micro-compressor that is as powerful as other compressors 5x its size. Utilizing a miniature vapor compressor, this Alphacooler is capable of cooling to lower than, but electronically limited to 35º F. Included Freon is sealed within the rotary micro-compressor system. Max amp draw is rated at 18-22 amps, depending on installation and environmental conditions. Weighing less than 7kgs/15 pounds, the water cooler is portable and there is a remote control for users, it is plug-and-play.
The AlphaCooler is the smallest, lightest, and most energy-efficient solution of its kind. It is specially used to increase personal effectiveness in hot weather conditions or while using protective equipment, markets include hospitals, medical, military, firefighters, outdoor workers, 1st responders, racing, and so on.

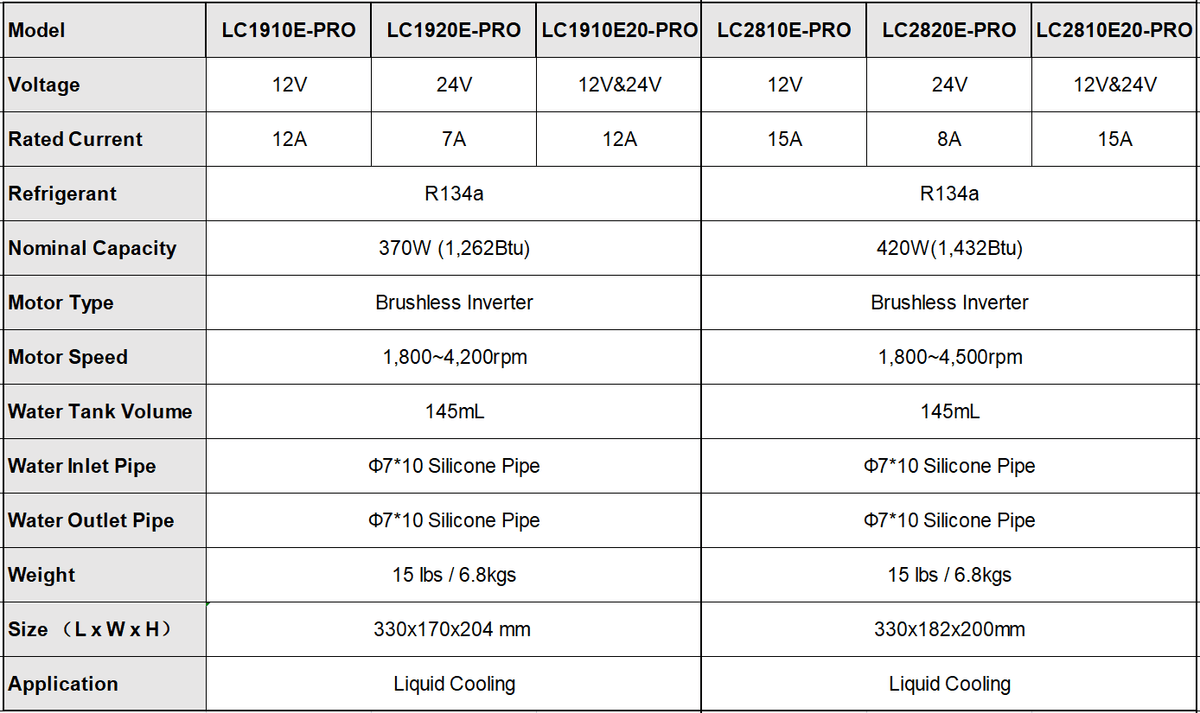

Technical Data
Alphacooler Model
12V Alphacooler
Model: LC1910E-PRO
- Voltage: DC 12V
- Refrigerant: R134a
- Capacity: 100~450W
- Digital Display Controller
- Reservoir: 145ml
- Pump Flow Rate: 7.5L/min
- Weight: 6.8kgs (15lbs)
- L x W x H: 330x170x204mm (13×6.7×8 inch)
24V Alphacooler
Model: LC1920E-PRO
- Voltage: DC 24V
- Refrigerant: R134a
- Capacity: 100~450W
- Digital Display Controller
- Reservoir: 145ml
- Pump Flow Rate: 7.5L/min
- Weight: 6.8kgs (15lbs)
- L x W x H: 330x170x204mm (13×6.7×8 inch)
12V&24V Alphacooler
Model: LC1910E20-PRO
- Voltage: DC 12V / 24V
- Refrigerant: R134a
- Capacity: 100~450W
- Digital Display Controller
- Reservoir: 145ml
- Pump Flow Rate: 7.5L/min
- Weight: 6.8kgs (15lbs)
- L x W x H: 330x170x204mm (13×6.7×8 inch)
12V Alphacooler-PRO
Model: LC2810E-PRO
Product: More Powerful Alphacooler (>50% capacity more than LC1910E-PRO series)
Voltage: DC 12V
Refrigerant: R134a
Capacity: 100~500W
Digital Display Controller
Reservoir: 145ml
Pump Flow Rate: 7.5L/min
Weight: 10.0kgs (22lbs)
L x W x H: 330x182x200mm (13.0×7.2×7.8 inch)24V Alphacooler-PRO
Model: LC2820E-PRO
Product: More Powerful Alphacooler (>50% capacity more than LC1910E-PRO series)
Voltage: DC 24V
Refrigerant: R134a
Capacity: 100~500W
Digital Display Controller
Reservoir: 145ml
Pump Flow Rate: 7.5L/min
Weight: 10.0kgs (22lbs)
L x W x H: 330x182x200mm (13.0×7.2×7.8 inch)12V&24V Alphacooler-PRO
Model: LC2810E20-PRO
Product: More Powerful Alphacooler (>50% capacity more than LC1910E-PRO series)
Voltage: DC 12V&24V
Refrigerant: R134a
Capacity: 100~500W
Digital Display Controller
Reservoir: 145ml
Pump Flow Rate: 7.5L/min
Weight: 10.0kgs (22lbs)

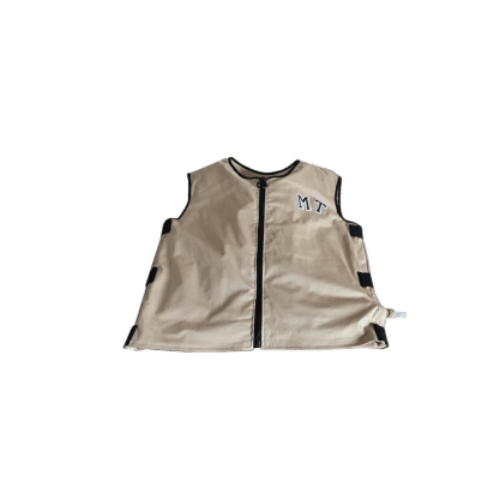

L x W x H: 330x182x200mm (13.0×7.2×7.8 inch)Body Cooling Vest
Vest cool: 37℉ to 70℉
One size fits most: 110lbs ~220lbs
Quick coupling connector included
Vest weights: 4.5 pounds when fully loaded with waterFeatures:
- Neat zipper fastening
- Washable in a regular laundry
- Side elastic straps fit a wide range of body sizes
- 70 feet long of insulated tubing and an auto-drain quick connector
- Fabrics: 100% cotton fabrics treated with a flame-retardant finish

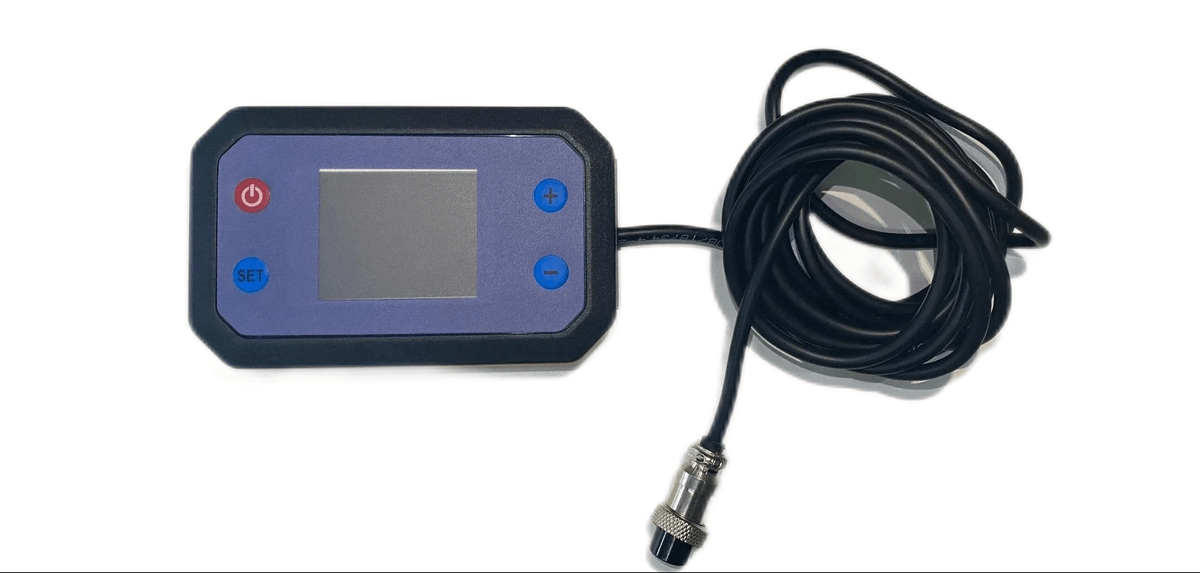

Remote Controller
Remote Controller for AlphaCooler racing cooler
Advantage
High Capacity
Miniature Size
High Efficiency
High Reliability
Low Weight
Low noise
Application
Features
Outstanding Performance By BLDC compressor
Arctic Active Cooling compact cooler using miniature brushless dc compressors delivers outstanding performance for body cooling.
Precise Thermal Management
Personal coolers come with temperature adjustments. Depending on the conditions you are in, you can adjust the effect to suit your needs.
No ice, No-hassle
Powered by a vapor micro-compressor that requires zero ice to operate, utilizes a combination of water-glycol for circulatory cooling. It is plug-and-play, works continuously 24/7.
E-shop
Sample products are available from our online store.
Your order will be proceeded in 24hrs and delivered by DHL/UPS/FedEx.
