    24V Mini Compressor

    Eco-friendly direct current mini compressor comes with great power and less noise.

    • 24V DC
    • R134a Refrigerant
    • Brushless Motor Drive
    • Small in size, yet large in power density
    • 2,000~6,000 rpm variable speeds drive board
    • The world’s smallest footprint 24V DC compressor
    • Small Compressor for Heating and Cooling (HBP/MBP/LBP)

  • Your Premier 24V Compressor Supplier

    Arctic Active Cooling 24V DC compressor is bldc rotary compressor using refrigerant R134a.The 24V Compressor is powered by direct current (DC) electrical energy. Its tiny size is perfect for micro and mobile cooing system and air conditioning applications. 24 Volt compressor is controlled by our developed patented driver board, which has the function of variable speed ranges from 2000rpm to 6000rpm.



    With a wide range of application of air conditioning and refrigerating conditions, our 24V compressor has features of exceptionally compact and outstanding cooling capacity, which enable it applies to mobile and compact cooling systems. Plus, the 24V direct current compressor is the best mini compressor has outstanding performance than that of Peltier cooling. Furthermore, 24V compressor has lower working current than that of 12V compressor.



    Arctic Active Cooling 24V dc compressor has the world’s smallest size and lightest weight. It is ideally suited to meet the stringent demands of mobile and portable cooling. Through our line of miniature compressors, Arctic Active Cooling provides the key enabling technology to original equipment manufacturers for small and portable systems that were not previously possible.

  • Technical Data

    broken image

  • Compressor Model

    broken image

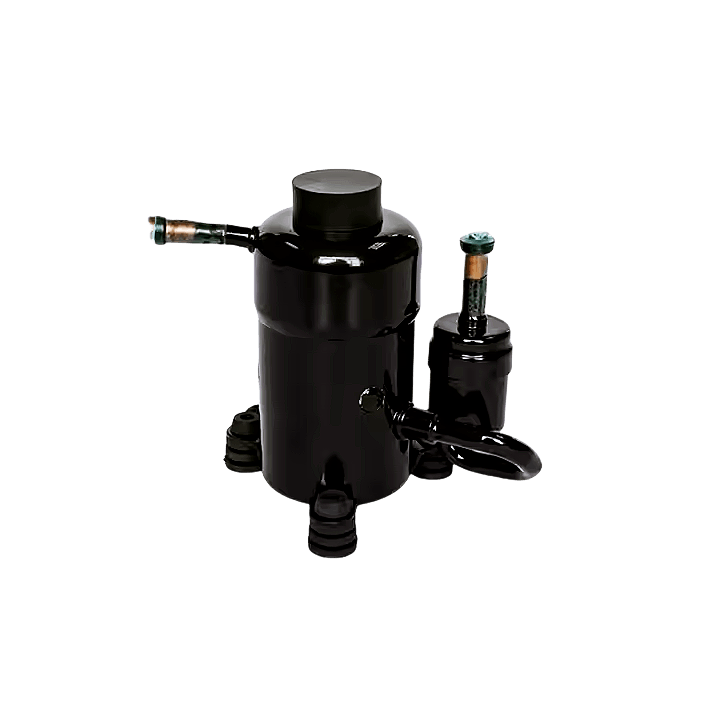

    24V MINI COMPRESSOR

    Model: QX1902VDL(H)

    • Voltage: 24V DC
    • Refrigerant: R134a
    • Net Weight: 1.6 lbs / 0.72kgs
    • Motor Type: Variable Speed Motor
    • Cooling Capacity: 100~455W (360~1550Btu)
    • Applications: Heating, Cooling and Refrigeration
    broken image

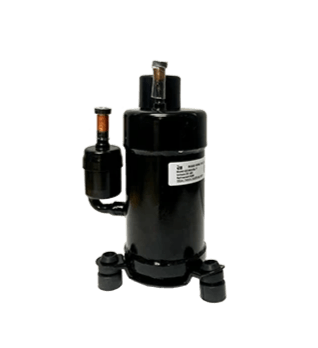

    24V MINI COMPRESSOR

    Model: QX2802VDL

    • Voltage: 24V
    • Weight:1.3kgs /2.87lbs
    • Refrigerant: R134a
    • Cylinder Number: 2 pumps
    • Size: 117.5 x 61 mm (High x Diameter)
    • Capacity: ≥490W (1,670Btu)
    • Working Amps: 1~8.3A, (Maximum 12A)
    • Variable speed drive board (1,800~4,500rpm)Display Panel included
    • Work at ambient temperature -20℃ ~ 55℃
    • Applications: Miniature Refrigeration & Freezer System; Portable Cooling System.
    broken image

    24V R290 MINI COMPRESSOR

    Model: QX2802VDL-T

    • Voltage: 24V
    • Weight:1.3kgs /2.87lbs
    • Refrigerant: R290
    • Cylinder Number: 2 pumps
    • Size: 117.5 x 61 mm (High x Diameter)
    • Capacity: ≥500W to 700W (2,387Btu)
    • Working Amps: 1~8.3A, (Maximum 12A)
    • Variable speed drive board (2,100~4,500rpm)Display Panel included
    • Work at ambient temperature -20℃ ~ 55℃
    • Applications: Miniature Refrigeration & Freezer System; Portable Cooling System.
    broken image

    24V MINI COMPRESSOR

    Model: QX3802VDL

    • Voltage: 24V
    • Weight:1.6kgs /53lbs
    • Refrigerant: R134a
    • Cylinder Number: 2 pumps
    • Capacity: ≥635W (2,165Btu)
    • Size: 152.6 x 61 mm (High x Diameter)
    • Working Amps: 1~12A
    • Variable speed drive board (2,100~4,500rpm)Display Panel included
    • Work at ambient temperature -20℃ ~ 55℃
    • Applications: Miniature Refrigeration & Freezer System; Portable Cooling System.
    broken image

    24V R290 MINI COMPRESSOR

    Model: QX3802VDL-T

    • Voltage: 24V
    • Weight:1.6kgs /53lbs
    • Refrigerant: R290
    • Cylinder Number: 2 pumps
    • Capacity: ＞760W (2,592Btu)
    • Size: 152.6 x 61 mm (High x Diameter)
    • Working Amps: 1~12A
    • Variable speed drive board (2,100~4,500rpm)Display Panel included
    • Work at ambient temperature -20℃ ~ 55℃
    • Applications: Miniature Refrigeration & Freezer System; Portable Cooling System.
    broken image

    24V LARGE COMPRESSOR

    Model: XB075Z-24

    • Voltage: 24V DC
    • Refrigerant: R134a
    • Net Weight: 17.2 lbs / 7.8kgs
    • Motor Type: Variable Speed Motor
    • Cooling Capacity: 850W (2,898Btu)
    • Applications: Heating, Cooling, and Refrigeration
    broken image

    24V LARGE COMPRESSOR

    Model: KVB150Z-24

    • Compressor Series: KVB150
    • Refrigerant: R134a
    • Running Voltage: 24V
    • 2000-4500rpm with drive board
    • Input Power: 600W
    • Cooling Capacity: 1780W (6,069Btu)
    • High power mini compressor for truck/RV DC air conditioner/battery cooling/laser cooling etc.

  • Advantage

    High Capacity

    Miniature Size

    High Efficiency

    High Reliability

    Low Weight

    Low noise

  • Application

    broken image
    broken image

  • Features

    High Performance By BLDC Motor

    Arctic Active Cooling direct current 12V mini compressor comes with a sine wave variable speed driver board, delivering efficient and reliable performance.

    DC Inverter By Arctic Active Cooling Technology

    Wide-range inverter compressors satisfy your innovative demands and design. Your product will stand out, your compressor will go unnoticed.

    360° Sine Wave Inverter Drive Board

    Arctic Active Cooling inverter compressor drive board has features of high reliability and power density.
